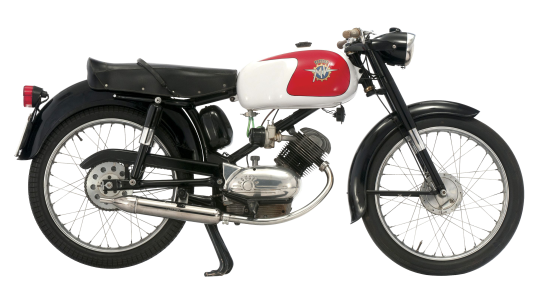

MV Agusta 83CC "Ottantatre" Turismo
Intorduced in 1958, the “Ottantatre” (Eighty-three) used an unusual engine displacement, 83cc. While motorcyclys today tend towards the bigger the better formula, in 1958, buyers were looking for transportation that wouldn’t break the bank, either when buying the machine or filling its fuel tank. MV experimented with engine displacements and felt that 83cc was sufficient to power a motorcycle that could carry two people and still deliver acceptable fuel economy. Two versions of the “Ottantatre” were available, Turisom and Sport. The diminutive 4-stroke engine puffed out 4,2 HP at 6,400 rpm, enough to propel the bike to 80 km/h. A front hydraulic fork held up a simple, sturdy, tubular frame, while the rear suspension was a swingarm design. This version cost 135,000 Lire in 1960.
Engine: Technical Specification (1959)
Cylinders / Cycle: single / 4-stroke
Displacement: 83,2 cc
Bore x stroke: 46,5 x 49 mm
Compression ratio: 7,5:1
Power / rpm: 4,2 HP / 6,000
Torque / rpm: NA
Cooling: air
Distribution: single overhead cam
Ignition: flywheel-magneto
Carburettor: 22 mm carburettor
Lubrication: wet sump
Starting: kickstart
Primary drive: gear
Clutch: wet multiple plate clutch
Gearbox: 3 speeds
Final drive: chain
Chassis:
Frame: steel single beam frame
Front suspension: telescopic hydraulic fork
Rear suspension: swingarm with hydraulic shocks
Front brake: 118 mm drum
Rear brake: 118 mm drum
Front tire: 2.50 x19”
Rear tire: 2.50 x19”
Wheels: spokes
Tank: 12 litres
Length: 1905 mm
Width: 620 mm
Wheelbase: 1245 mm
Weight: 83 Kg
Performance: 80 kph
